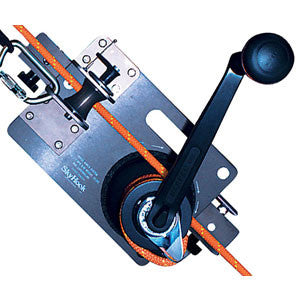

SkyHook Rescue Winch

SkyHook Power Drive
(A Two-Speed, Self-Tailing, Manual Winch With A Removable Handle For Compact Storage)

A two-speed, self-tailing, manual winch with a removable handle for compact storage. The winch is mounted to a versatile base plate which features a guide roller assembly (GRA) that allows for easy placement or removal of the static kernmantle rope. The GRAs attachment holes will work with single and/or tandem Prusiks. When the Prusik safety is attached and the rope is loaded, the unit provides the user the ability to remove or replace the load rope and change to a second rope, minimizing time and equipment needed to duplicate the raising and lowering system.

The Sky Hook hoist utilizes any length of NFPA 1/2 (12.5 mm) static kernmantle rope. It will work with 7/16" (11mm ropes) but the self-tailing function will be limited. The winch provides a gear ratio of 2.2:1 and 6:1, and a power ratio of 13.5:1 and 40:1.

The base plate can connect quickly to the Sure-Strong or Sked Evac Tripod legs, but has the flexibility to attach to a variety of structures via tie-down holes. The Sky Hook tripod system can be vehicle mounted, provided the vehicle has a trailer hitch receiver, for roadside rescue. The trailer hitch extension bar can swing/articulate 90 degrees. Powder coated, black.

• Two-Speed,
• Removable Handle For Compact Storage
• Mounted To A Versatile Base Plate Which Features A Guide Roller Assembly (GRA)
• Easy Placement Or Removal Of The Static Kernmantle Rope
• GRAs Attachment Holes Will Work With Single And/Or Tandem Prusiks
• Gear Ratio Of 2.2:1 And 6:1,
• Power Ratio Of 13.5:1 And 40:1
• Base Plate Can Connect Quickly To The Sure-Strong Or Sked Evac Tripod Legs
• Extension Bar Can Swing/Articulate 90 Degrees
• Powder Coated
• Color: Black
